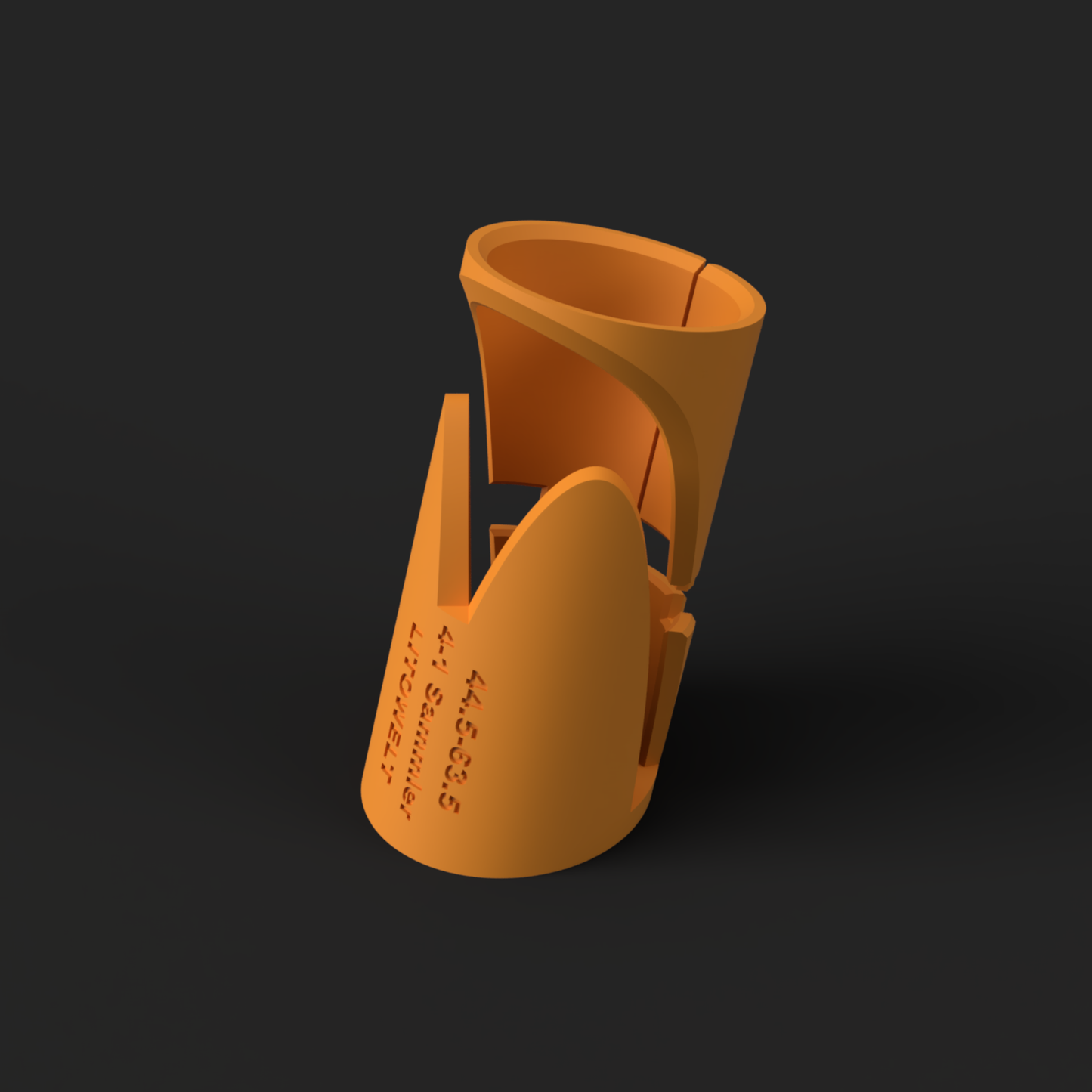

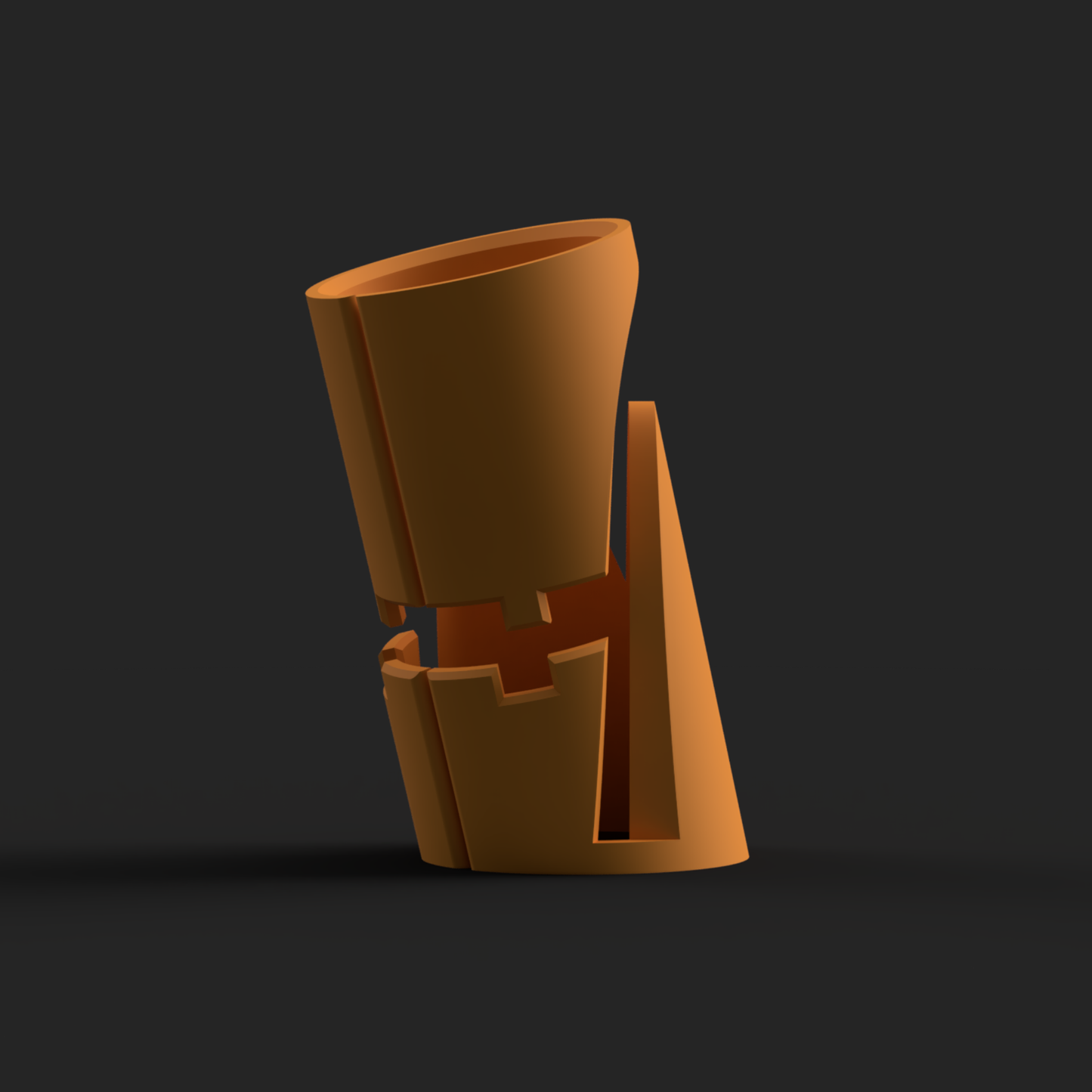

4-1 Collector Drawing Template – Now Available as an STL File for 3D Printing!
Discover our innovative drawing template that allows you to easily and cost-effectively create your own 4-1 collector for exhaust systems – now also available as a digital version for 3D printing!

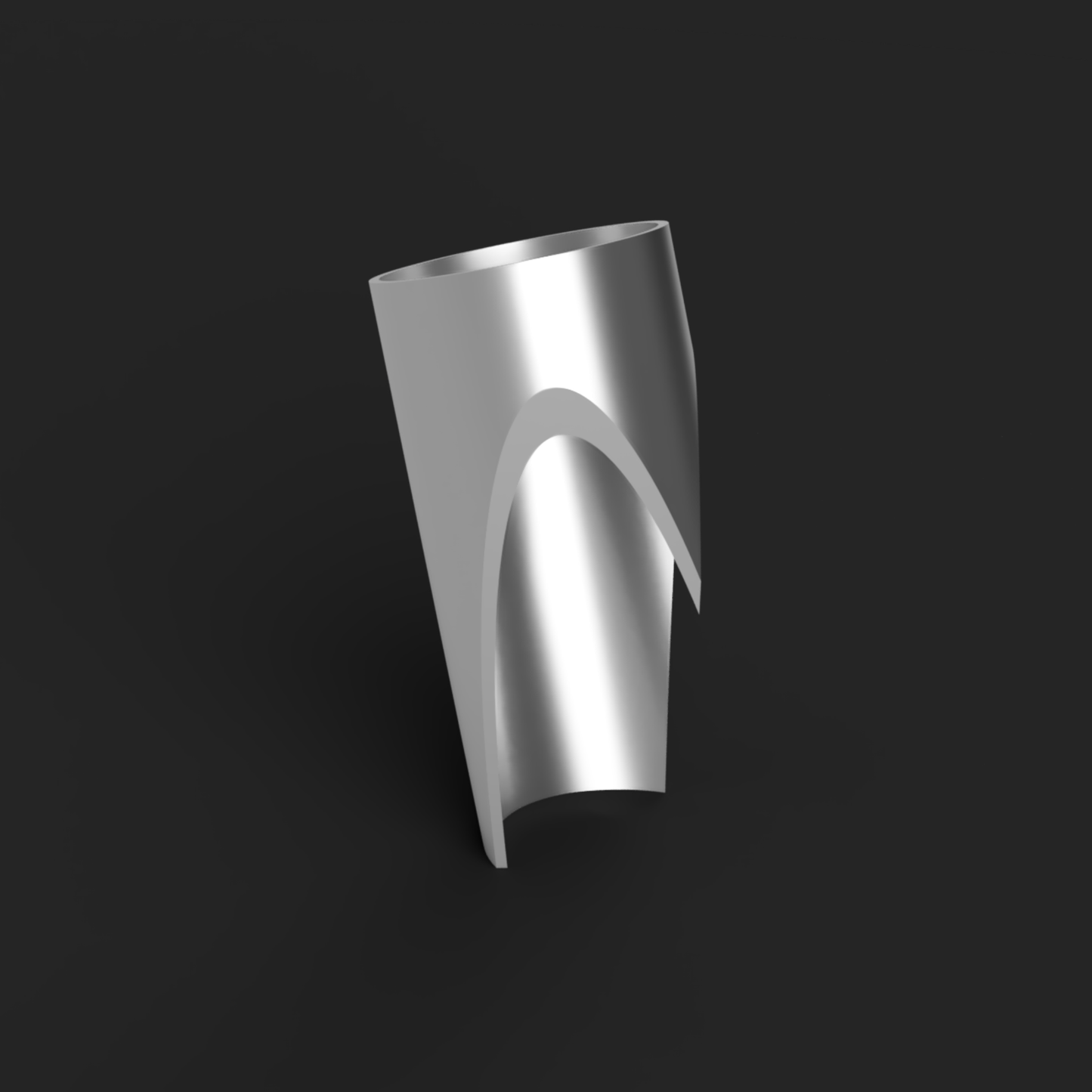

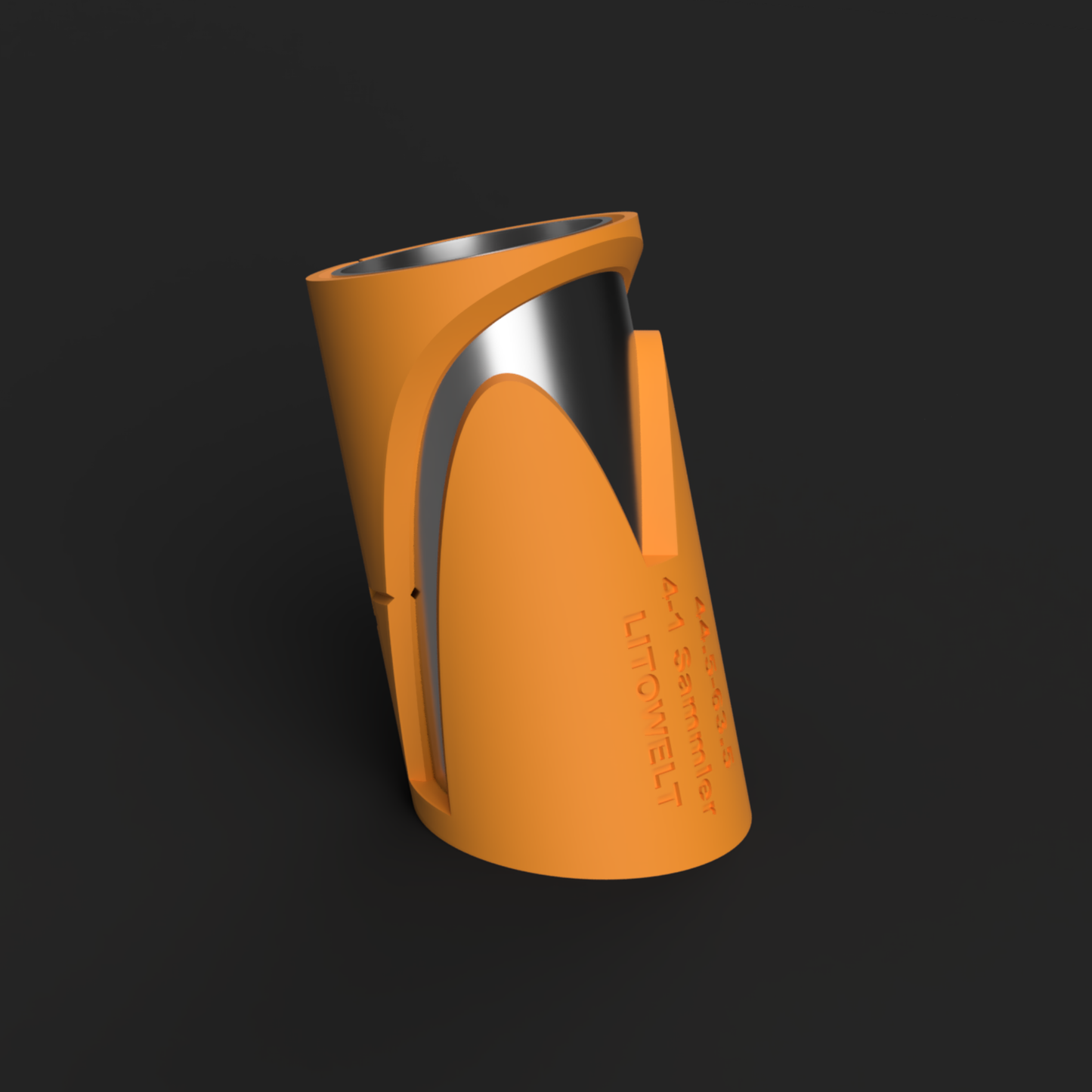

Here’s how it works: Simply slide the template onto the pipe, mark the cutting lines, and make clean cuts. Repeat this process four times and voilà — your collector is ready to be welded.
Before we forget: To achieve a perfect circle at the outlet, you'll need to slightly flare the end of the pipe.
Now Available for DIY 3D Printing!
Let’s be honest – many of us now have a 3D printer at home or in the garage. That’s why we’re offering our template as an STL file for download.
Important: For Private Use Only!
For more information about the license, please check the “License” section under Downloads.
Recommended Print Settings:
- 0.16 mm layer height (or variable height if available)
- Minimum 3 outer wall perimeters
- Infill: at least 20%
- Material PETG
Tested on a Bambulab X1C/P1S and Prusa MK3s.
